Which JSON data type is an unordered set of attribute-value pairs?
A. array
B. string
C. object
D. Boolean
A network engineer must configure the router R1 GigabitEthernet1/1 interface to connect to the router R2 GigabitEthernet1/1 interface. For the configuration to be applied the engineer must compress the address 2001:0db8:0000:0000:0500:000a:400F:583B.
Which command must be issued on the interface?
A. ipv6 address 2001:0db8::5:a:4F:583B
B. ipv6 address 2001:db8::500:a:400F:583B
C. ipv6 address 2001 db8:0::500:a:4F:583B
D. ipv6 address 2001::db8:0000::500:a:400F:583B
What is the benefit of using FHRP?
A. reduced management overhead on network routers
B. balancing traffic across multiple gateways in proportion to their loads
C. higher degree of availability
D. reduced ARP traffic on the network
Which two QoS tools provides congestion management? ( Choose two )
A. CAR
B. CBWFQ
C. PQ
D. PBR
E. FRTS

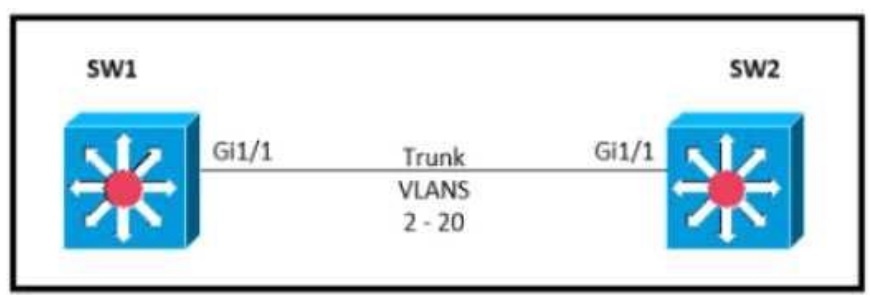

Refer to the exhibit. Which command must be executed for Gi1.1 on SW1 to become a trunk port if Gi1/1 on SW2 is configured in desirable or trunk mode?
A. switchport mode trunk
B. switchport mode dot1-tunnel
C. switchport mode dynamic auto
D. switchport mode dynamic desirable

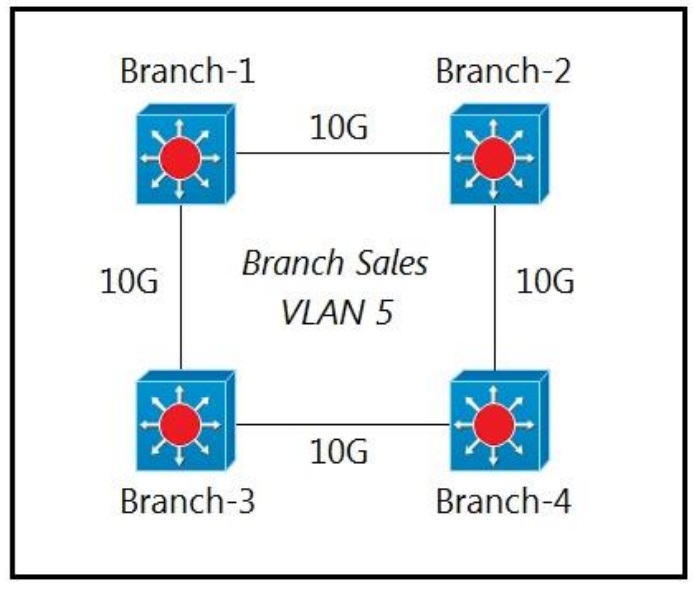

Refer to the exhibit. Only four switches are participating in the VLAN spanning-tree process.
Branch-1 priority 614440
Branch-2: priority 39082416
Branch-3: priority 0
Branch-4: root primary
Which switch becomes the permanent root bridge for VLAN 5?
A. Branch-1
B. Branch-2
C. Branch-3
D. Branch-4
A network administrator must to configure SSH for remote access to router R1. The requirement is to use a public and private key pair to encrypt management traffic to and from the connecting client. Which configuration, when applied, meets the requirements?
A. R1#enable R1#configure terminal
R1(config)#ip domain-name cisco.com
R1(config)#crypto key generate ec keysize 1024
B. R1#enable R1#configure terminal
R1(config)#ip domain-name cisco.com
R1(config)#crypto key generate ec keysize 2048
C. R1#enable R1#configure terminal
R1(config)#ip domain-name cisco.com
R1(config)#crypto key encrypt rsa name myKey
D. R1#enable R1#configure terminal
R1(config)#ip domain-name cisco.com
R1(config)#crypto key generate rsa modulus 1024
When deploying syslog, which severity level logs informational message?
A. 0
B. 2
C. 4
D. 6
An engineer observes high usage on the 2.4GHz channels and lower usage on the 5GHz channels. What must be configured to allow clients to preferentially use 5GH2 access points?
A. Re-Anchor Roamed Clients
B. 11ac MU-MIMO
C. OEAP Split Tunnel
D. Client Band Select
An administrator must secure the WLC from receiving spoofed association requests.
Which steps must be taken to configure the WLC to restrict the requests and force the user to wait 10 ms to retry an association request?
A. Enable Security Association Teardown Protection a d set the SA Query timeout to 10
B. Enable MAC filtering and set the SA Query timeout to 10
C. Enable 802.1x Layer 2 security and set me Comeback timer to 10
D. Enable the Protected Management Frame service and set the Comeback timer to 10
