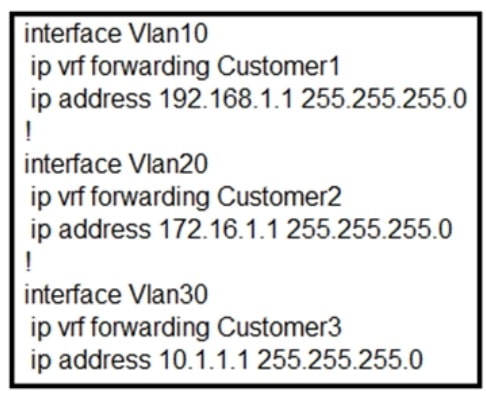

Refer to the exhibit. Which configuration allows Customer2 hosts to access the FTP server of Customer1 that has the IP address of 192.168.1.200?
- A. ip route vrf Customer1 172.16.1.0 255.255.255.0 172.16.1.1 global ip route vrf Customer2 192.168.1.200 255.255.255.255 192.168.1.1 global ip route 192.168.1.0 255.255.255.0 Vlan10 ip route 172.16.1.0 255.255.255.0 Vlan20
- B. ip route vrf Customer1 172.16.1.1 255.255.255.255 172.16.1.1 global ip route vrf Customer2 192.168.1.200 255.255.255.0 192.168.1.1 global ip route 192.168.1.0 255.255.255.0 Vlan10 ip route 172.16.1.0 255.255.255.0 Vlan20
- C. ip route vrf Customer1 172.16.1.0 255.255.255.0 172.16.1.1 Customer2 ip route vrf Customer2 192.168.1.200 255.255.255.255 192.168.1.1 Customer1
- D. ip route vrf Customer1 172.16.1.0 255.255.255.0 172.16.1.1 Customer1 ip route vrf Customer2 192.168.1.200 255.255.255.255 192.168.1.1 Customer2

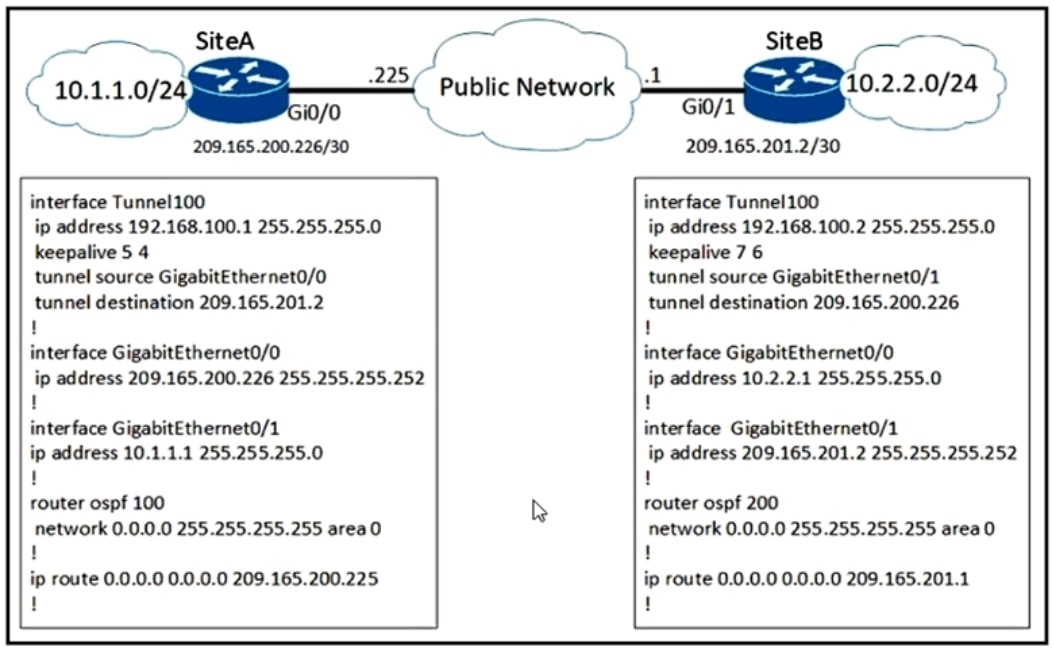

Refer to the exhibit. A network engineer configures a new GRE tunnel and enters the show run command. What does the output verify?
- A. The tunnel keepalive is configured incorrectly because they must match on both sites.
- B. The tunnel destination will be known via the tunnel interface.
- C. The tunnel will be established and work as expected.
- D. The default MTU of the tunnel interface is 1500 bytes.
Question 93
DRAG DROP –
Drag and drop the virtual components from the left onto their descriptions on the right.
Select and Place:
Which element enables communication between guest VMs within a virtualized environment?
- A. hypervisor
- B. virtual router
- C. vSwitch
- D. pNIC
Which antenna type should be used for a site-to-site wireless connection?
- A. patch
- B. dipole
- C. omnidirectional
- D. Yagi

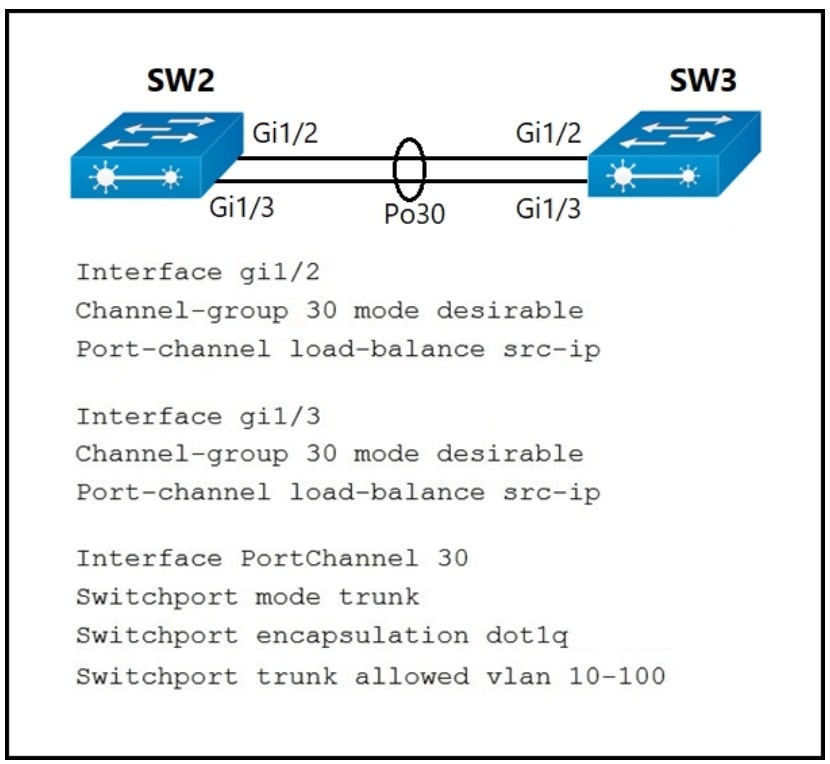

Refer to the exhibit.
A port channel is configured between SW2 and SW3. SW2 is not running a Cisco operating system. When all physical connections are made, the port channel does not establish.
Based on the configuration excerpt of SW3, what is the cause of the problem?
- A. The port-channel mode should be set to auto.
- B. The port channel on SW2 is using an incompatible protocol.
- C. The port-channel trunk is not allowing the native VLAN.
- D. The port-channel interface load balance should be set to src-mac.
What is a fact about Cisco EAP-FAST?
- A. It requires a client certificate.
- B. It is an IETF standard.
- C. It does not require a RADIUS server certificate.
- D. It operates in transparent mode.
Which DNS lookup does an access point perform when attempting CAPWAP discovery?
- A. CISCO-CONTROLLER.local
- B. CAPWAP-CONTROLLER.local
- C. CISCO-CAPWAP-CONTROLLER.local
- D. CISCO-DNA-CONTROLLER.local

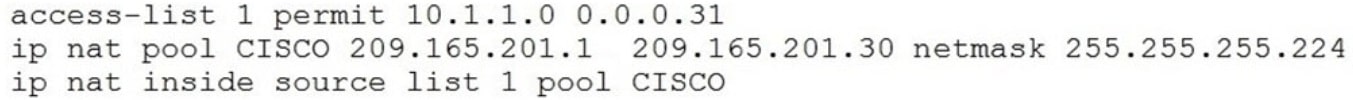

Refer to the exhibit.
What are two effects of this configuration? (Choose two.)
- A. It establishes a one-to-one NAT translation.
- B. The 209.165.201.0/27 subnet is assigned as the outside local address range.
- C. The 10.1.1.0/27 subnet is assigned as the inside local addresses.
- D. Inside source addresses are translated to the 209.165.201.0/27 subnet.
- E. The 10.1.1.0/27 subnet is assigned as the inside global address range.
An engineer configures a WLAN with fast transition enabled. Some legacy clients fail to connect to this WLAN.
Which feature allows the legacy clients to connect while still allowing other clients to use fast transition based on their OUIs?
- A. over the DS
- B. 802.11k
- C. adaptive R
- D. 802.11v
