Which statement about route targets is true when using VRF-Lite?
- A. Route targets control the import and export of routes into a customer routing table.
- B. When BGP is configured, route targets are transmitted as BGP standard communities.
- C. Route targets allow customers to be assigned overlapping addresses.
- D. Route targets uniquely identify the customer routing table.
Which LISP infrastructure device provides connectivity between non-LISP sites and LISP sites by receiving non-LISP traffic with a LISP site destination?
- A. PITR
- B. map resolver
- C. map server
- D. PETR
Which statement explains why Type 1 hypervisor is considered more efficient than Type2 hypervisor?
- A. Type 1 hypervisor is the only type of hypervisor that supports hardware acceleration techniques.
- B. Type 1 hypervisor relies on the existing OS of the host machine to access CPU, memory, storage, and network resources.
- C. Type 1 hypervisor runs directly on the physical hardware of the host machine without relying on the underlying OS.
- D. Type 1 hypervisor enables other operating systems to run on it.
Which TCP setting is tuned to minimize the risk of fragmentation on a GRE/IP tunnel?
- A. MSS
- B. MTU
- C. MRU
- D. window size
Which statement describes the IP and MAC allocation requirements for virtual machines on Type 1 hypervisors?
- A. Virtual machines do not require a unique IP or unique MAC. They share the IP and MAC address of the physical server.
- B. Each virtual machine requires a unique IP address but shares the MAC address with the physical server.
- C. Each virtual machine requires a unique IP and MAC addresses to be able to reach to other nodes.
- D. Each virtual machine requires a unique MAC address but shares the IP address with the physical server.
Which two namespaces does the LISP network architecture and protocol use? (Choose two.)
- A. TLOC
- B. RLOC
- C. DNS
- D. VTEP
- E. EID

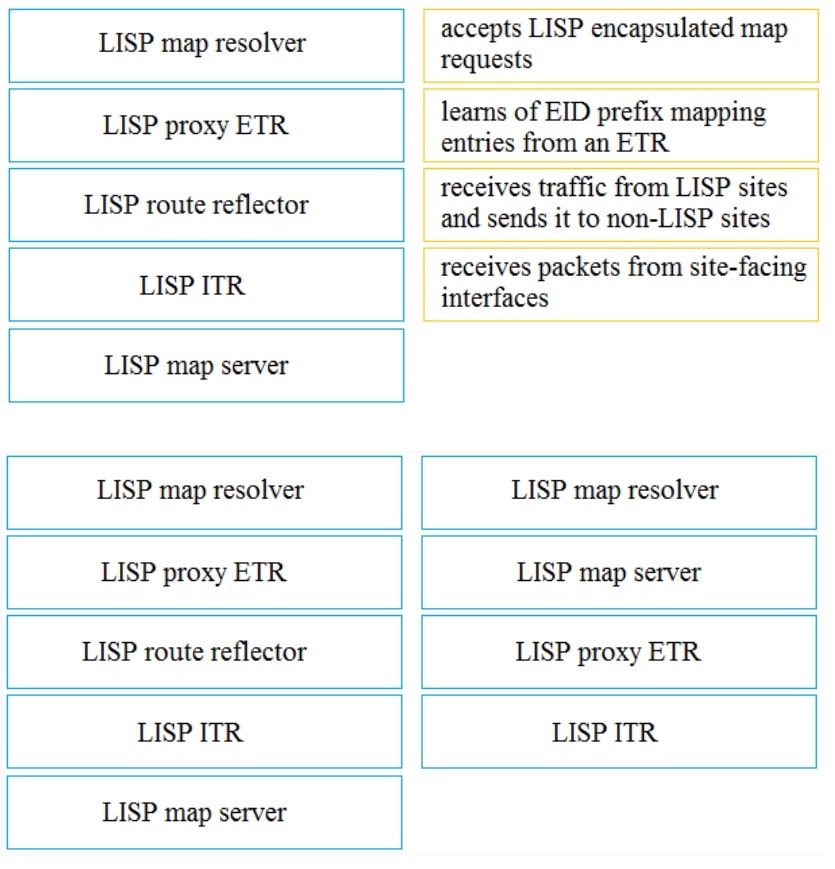

Drag and drop the LISP components from the left onto the functions they perform on the right. Not all options are used.
Select and Place:
Which action is a function of VTEP in VXLAN?
- A. tunneling traffic from IPv6 to IPv4 VXLANs
- B. allowing encrypted communication on the local VXLAN Ethernet segment
- C. encapsulating and de-encapsulating VXLAN Ethernet frames
- D. tunneling traffic from IPv4 to IPv6 VXLANs
Which two actions provide controlled Layer 2 network connectivity between virtual machines running on the same hypervisor? (Choose two.)
- A. Use a virtual switch provided by the hypervisor.
- B. Use a virtual switch running as a separate virtual machine.
- C. Use VXLAN fabric after installing VXLAN tunneling drivers on the virtual machines.
- D. Use a single routed link to an external router on stick.
- E. Use a single trunk link to an external Layer2 switch.
What is a Type 1 hypervisor?
- A. runs directly on a physical server and depends on a previously installed operating system
- B. runs directly on a physical server and includes its own operating system
- C. runs on a virtual server and depends on an already installed operating system
- D. runs on a virtual server and includes its own operating system
