What is a specification for SSIDs?
- A. They must include one number and one letter.
- B. They are a Cisco proprietary security feature.
- C. They are case sensitive.
- D. They define the VLAN on a switch.
DRAG DROP
–
Drag and drop the wireless architecture benefits from the left onto the architecture types on the right.

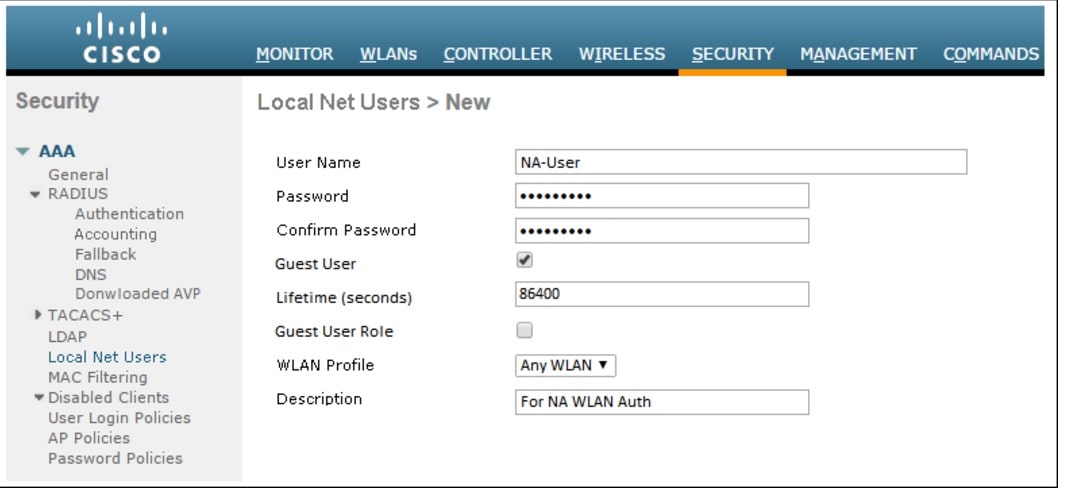

Refer to the exhibit. Wireless LAN access must be set up to force all clients from the NA WLAN to authenticate against the local database. The WLAN is configured for local EAP authentication. The time that users access the network must not be limited. Which action completes this configuration?
- A. Check the Guest User Role check box.
- B. Uncheck the Guest User check box.
- C. Set the Lifetime (seconds) value to 0.
- D. Clear the Lifetime (seconds) value.
What is an advantage of using auto mode versus static mode for power allocation when an access point is connected to a PoE switch port?
- A. Power policing is enabled at the same time.
- B. The default level is used for the access point.
- C. All four pairs of the cable are used.
- D. It detects the device is a powered device.
A Cisco engineer at a new branch office is configuring a wireless network with access points that connect to a controller that is based at corporate headquarters. Wireless client traffic must terminate at the branch office and access-point survivability is required in the event of a WAN outage. Which access point mode must be selected?
- A. Lightweight with local switching disabled
- B. FlexConnect with local switching enabled
- C. OfficeExtend with high availability disabled
- D. Local with AP fallback enabled
Which command configures the Cisco WLC to prevent a serial session with the WLC CLI from being automatically logged out?
- A. config sessions maxsessions 0
- B. config serial timeout 9600
- C. config serial timeout 0
- D. config sessions timeout 0
What must be considered for a locally switched FlexConnect AP if the VLANs that are used by the AP and client access are different?
- A. The APs must be connected to the switch with multiple links in LAG mode.
- B. The native VLAN must match the management VLAN of the AP.
- C. The switch port mode must be set to trunk.
- D. IEEE 802.1Q trunking must be disabled on the switch port.
Refer to the exhibit. An architect is managing a wireless network with APs from several branch offices connecting to the WLC in the data center. There is a new requirement for a single WLAN to process the client data traffic without sending it to the WLC. Which action must be taken to complete the request?
- A. Enable local HTTP profiling.
- B. Enable FlexConnect Local Switching.
- C. Enable local DHCP Profiling.
- D. Enable Disassociation Imminent.
A network engineer starts to implement a new wireless LAN by configuring the authentication server and creating the dynamic interface. What must be performed next to complete the basic configuration?
- A. Create the new WLAN and bind the dynamic interface to it.
- B. Configure high availability and redundancy for the access points.
- C. Enable Telnet and RADIUS access on the managoment interface.
- D. Install the management interface and add the management IP.

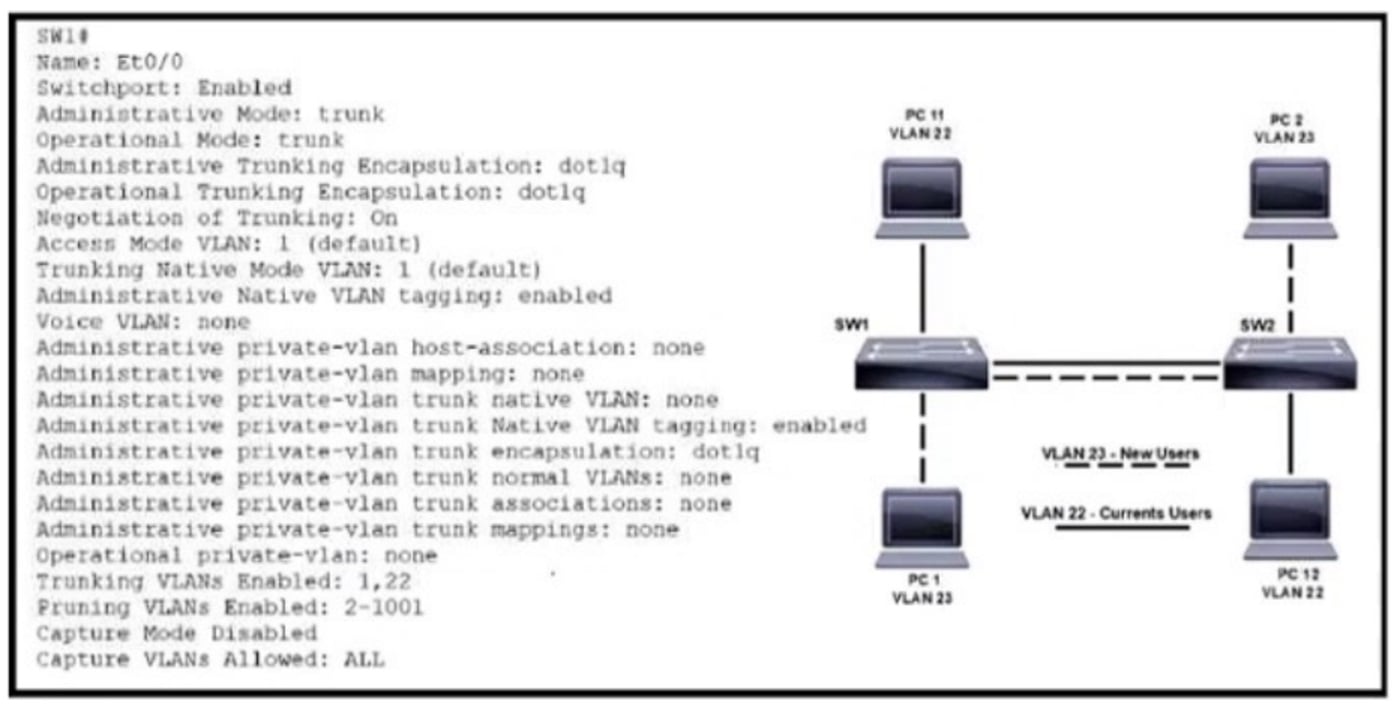

Refer to the exhibit. VLAN 23 is being implemented between SW1 and SW2. The command show interface ethernet0/0 switchport has been issued on SW1. Ethernet0/0 on SW1 is the uplink to SW2. Which command when entered on the uplink interface allows PC 1 and PC 2 to communicate without impact to the communication between PC 11 and PC 12?
- A. switchport trunk allowed vlan 2-1001
- B. switchport trunk allowed vlan 23
- C. switchport trunk allowed vlan add 23
- D. switchport trunk allowed vlan 22-23
