What are two descriptions of three-tier network topologies? (Choose two.)
A. The distribution layer runs Layer 2 and Layer 3 technologies
B. The network core is designed to maintain continuous connectivity when devices fail
C. The access layer manages routing between devices in different domains
D. The core layer maintains wired connections for each host
E. The core and distribution layers perform the same functions
Which type of ipv6 address is publicly routable in the same way as ipv4 public addresses?
A. multicast
B. unique local
C. link-local
D. global unicast
A corporate office uses four floors in a building.
– Floor 1 has 24 users.
– Floor 2 has 29 users.
– Floor 3 has 28 users.
– Floor 4 has 22 users.
Which subnet summarizes and gives the most efficient distribution of IP addresses for the router
configuration?
A. 192.168.0.0/24 as summary and 192.168.0.0/28 for each floor
B. 192.168.0.0/23 as summary and 192.168.0.0/25 for each floor
C. 192.168.0.0/25 as summary and 192.168.0.0/27 for each floor
D. 192.168.0.0/26 as summary and 192.168.0.0/29 for each floor

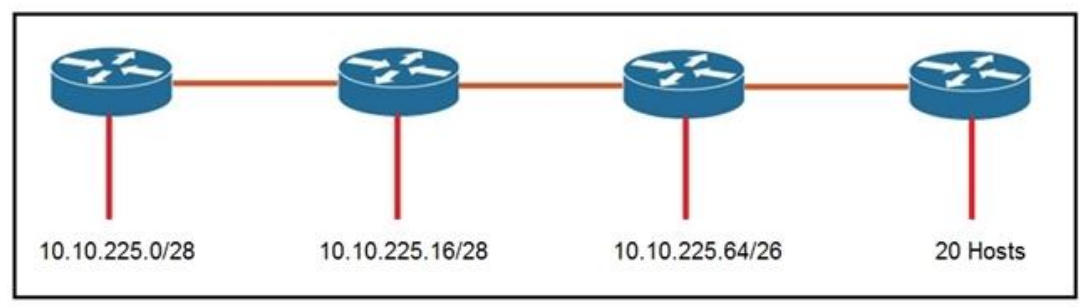

Refer to the exhibit. An engineer must add a subnet for a new office that will add 20 users to the network. Which IPv4 network and subnet mask combination does the engineer assign to minimize wasting addresses?
A. 10.10.225.48 255.255.255.240
B. 10.10.225.32 255.255.255.240
C. 10.10.225.48 255.255.255.224
D. 10.10.225.32 255.255.255.224
What is a characteristic of spine-and-leaf architecture?
A. Each link between leaf switches allows for higher bandwidth.
B. It provides greater predictability on STP blocked ports.
C. It provides variable latency.
D. Each device is separated by the same number of hops.

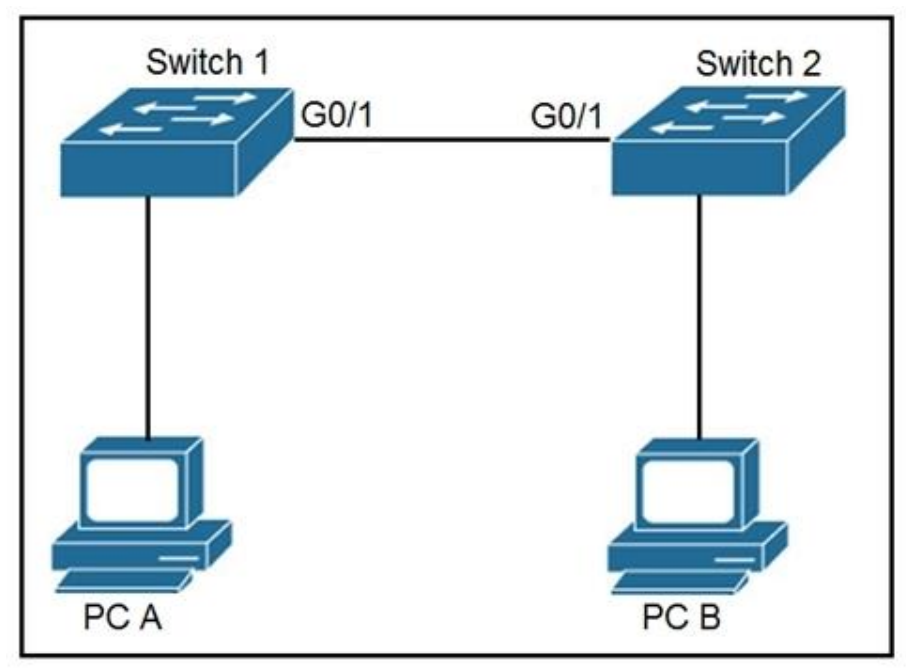

Refer to the exhibit. The network administrator wants VLAN 67 traffic to be untagged between Switch 1 and Switch 2, while all other VLANs are to remain tagged. Which command accomplishes this task?
A. switchport access vlan 67
B. switchport trunk allowed vlan 67
C. switchport private-vlan association host 67
D. switchport trunk native vlan 67
Which two command sequences must be configured on a switch to establish a Layer 3 EtherChannel with an open-standard protocol? (Choose two.)
A. interface GigabitEthernet0/0/1
channel-group 10 mode auto
B. interface GigabitEthernet0/0/1
channel-group 10 mode on
C. interface port-channel 10
no switchport
ip address 172.16.0.1 255.255.255.0
D. interface GigabitEthernet0/0/1
channel-group 10 mode active
E. interface port-channel 10
switchport
switchport mode trunk

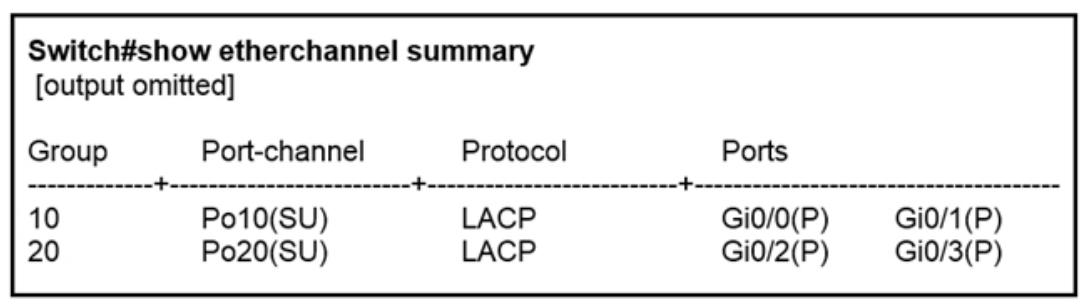

Refer to the exhibit. Which two commands were used to create port channel 10? (Choose two.)
A. int range g0/0-1
channel-group 10 mode active
B. int range g0/0-1
channel-group 10 mode desirable
C. int range g0/0-1
channel-group 10 mode passive
D. int range g0/0-1
channel-group 10 mode auto
E. int range g0/0-1
channel-group 10 mode on

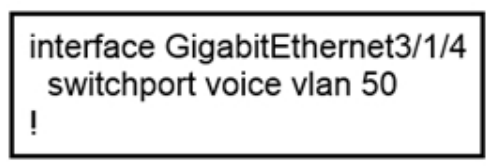

Refer to the exhibit. An administrator is tasked with configuring a voice VLAN. What is the expected outcome when a Cisco phone is connected to the GigabitEthernet 3/1/4 port on a switch?
A. The phone and a workstation that is connected to the phone do not have VLAN connectivity.
B. The phone sends and receives data in VLAN 50, but a workstation connected to the phone sends and receives data in VLAN 1.
C. The phone sends and receives data in VLAN 50, but a workstation connected to the phone has no VLAN connected.
D. The phone and a workstation that is connected to the phone send and receive data in VLAN 50.

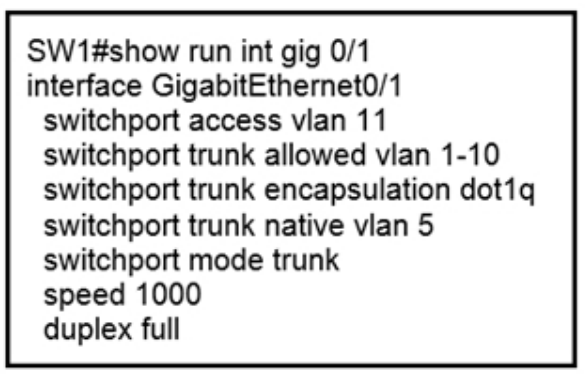

Refer to the exhibit. Which action is expected from SW1 when the untagged frame is received on the GigabitEthernet0/1 interface?
A. The frame is processed in VLAN 1
B. The frame is processed in VLAN 11
C. The frame is processed in VLAN 5
D. The frame is dropped
